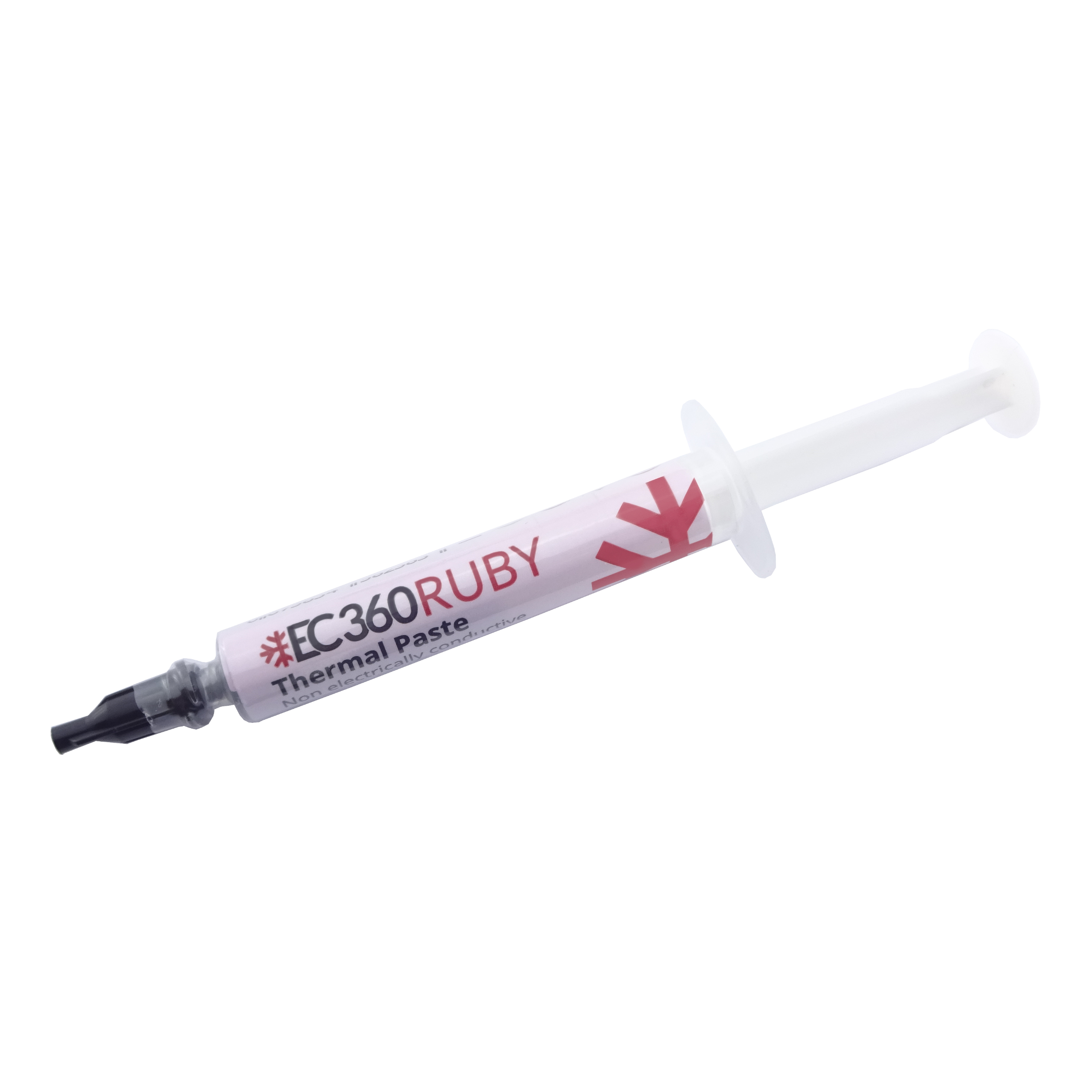

The EC360® RUBY series means Maximum Performance. A hightech composite of one of the most
thermal conductive materials in the world enables an outstandingly high thermal conductivity of 13.4W/mK.

Engineered with a focus on high performance, it is the perfect choice for cooling GPUs and CPUs in extreme cooling scenarios, like overclocking. In short, it ensures efficient dissipation of heat in any use case, with any thermal paste based cooling system, air-cooled or water-cooled.

At the same time, it can be safely applied, it is not electrically conductive, remains easy to spread and is highly durable. Low bleed,
non-flowing and low evaporation mean it is long-lasting, will stay in place and not dry out over time.

Types and Configuration

Type	Available sizes

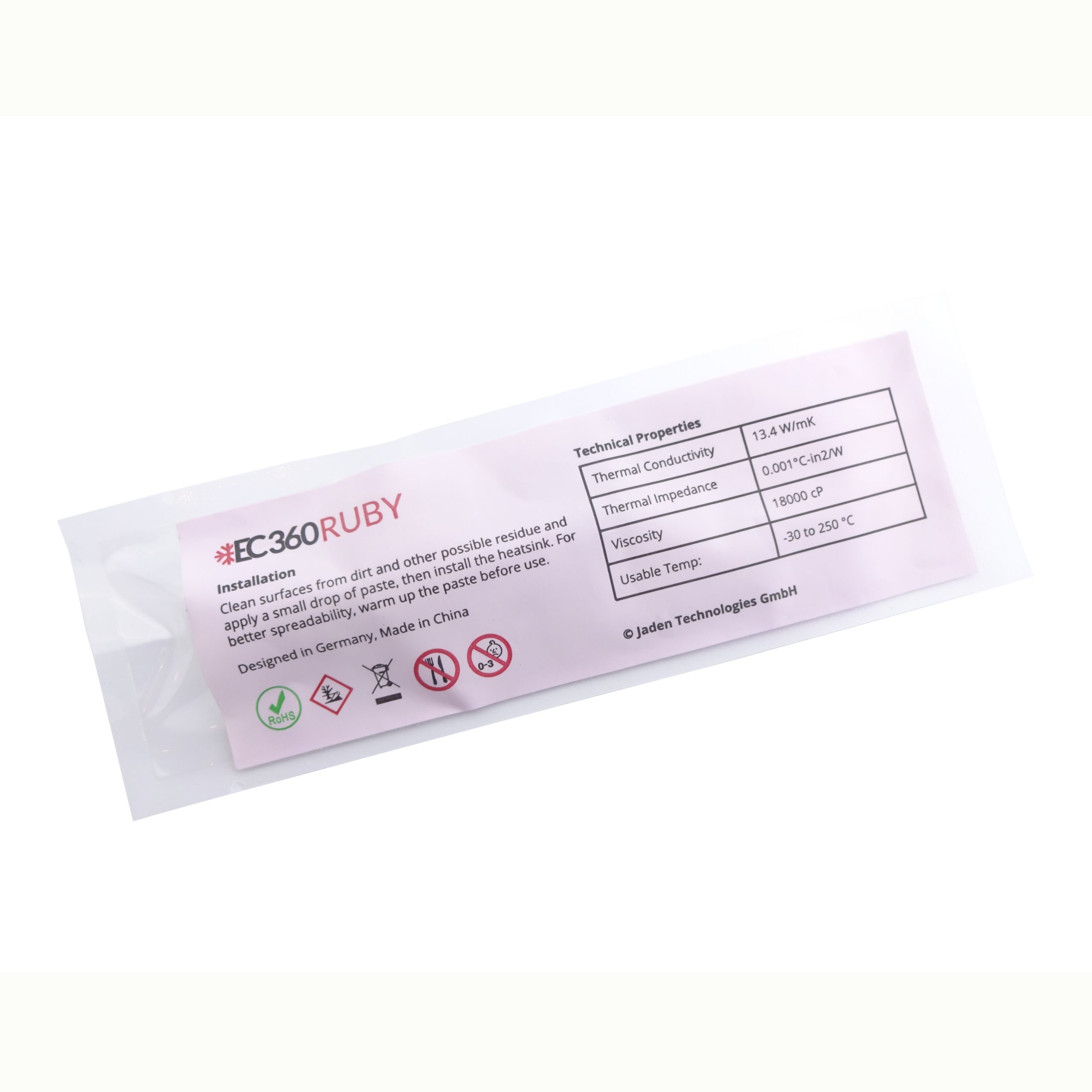

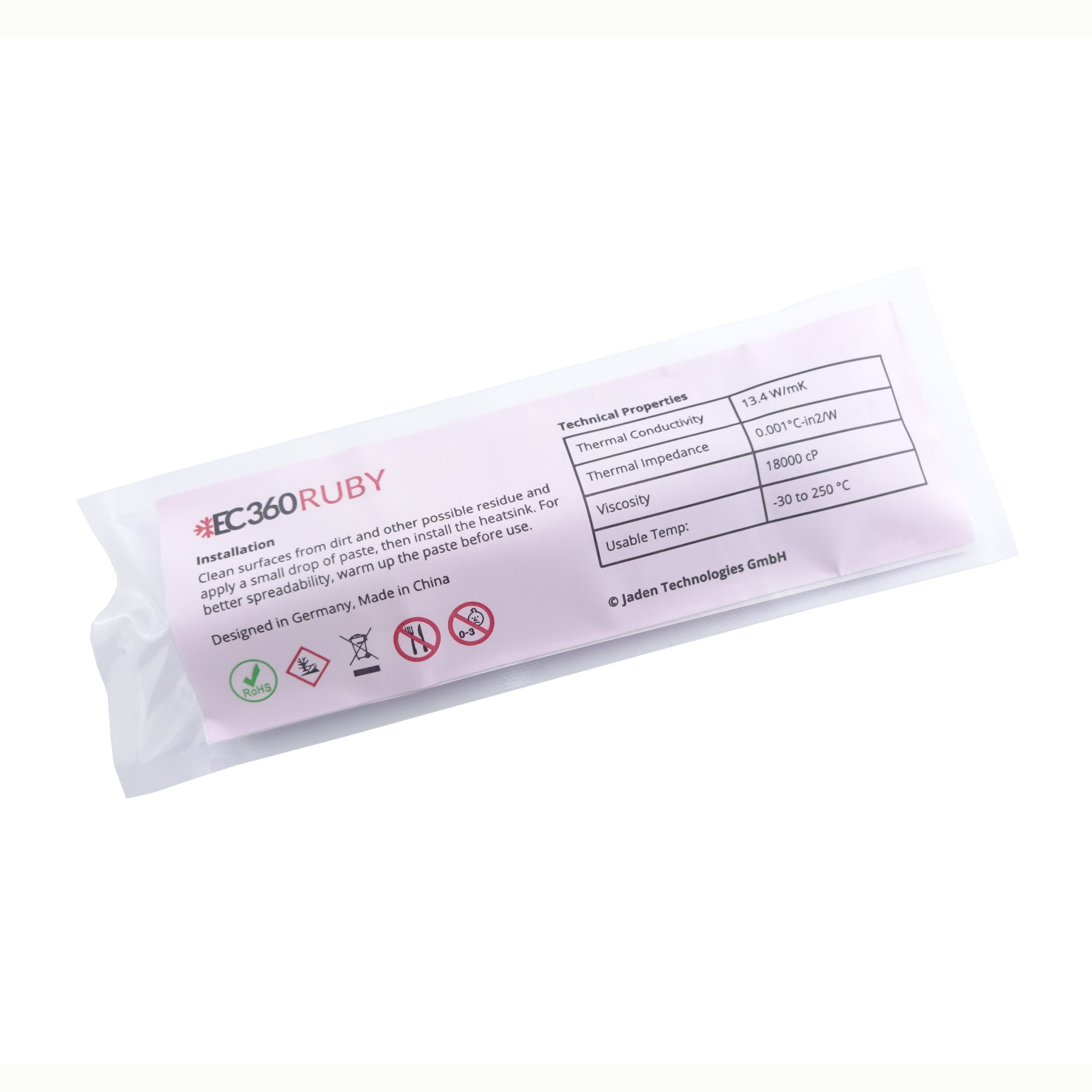

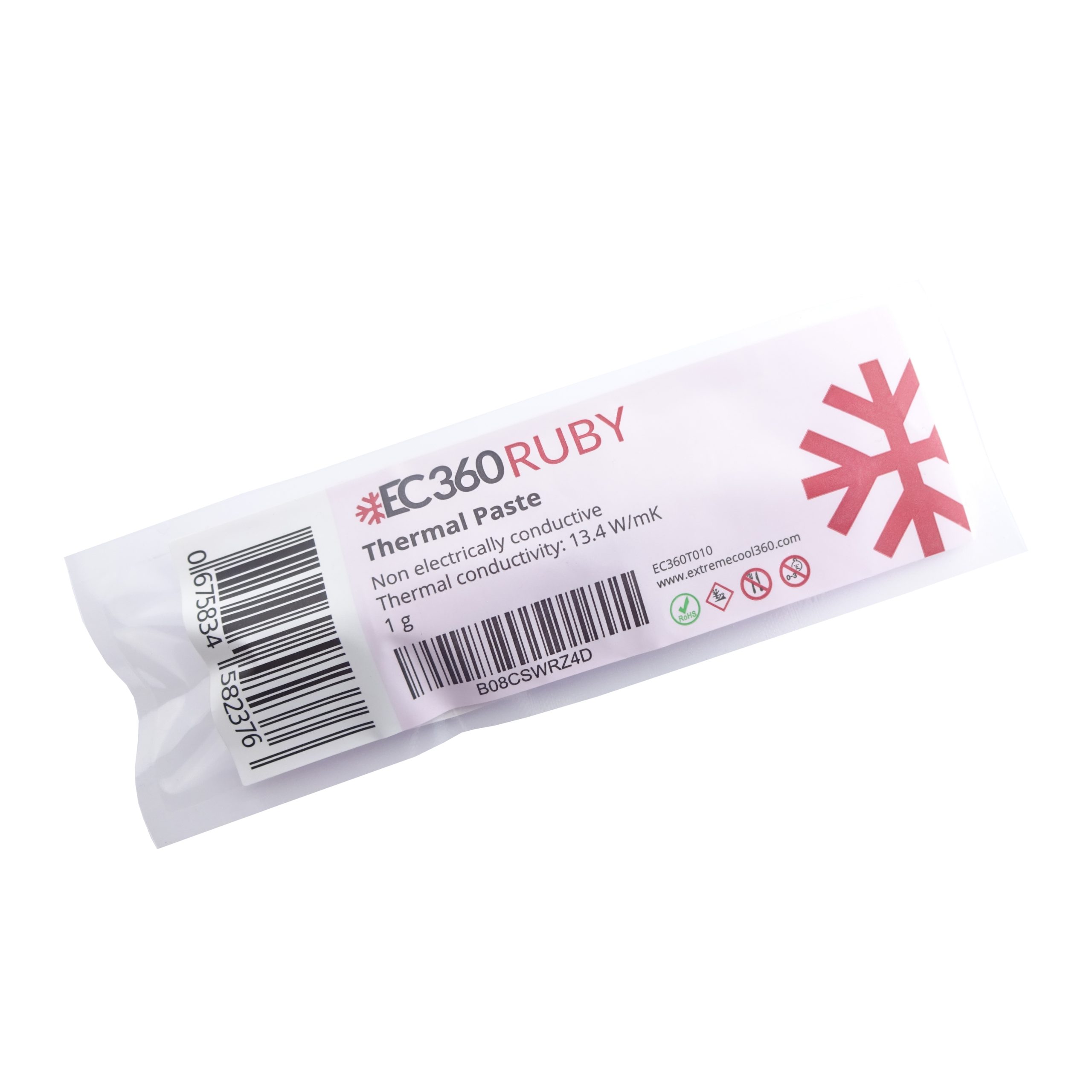

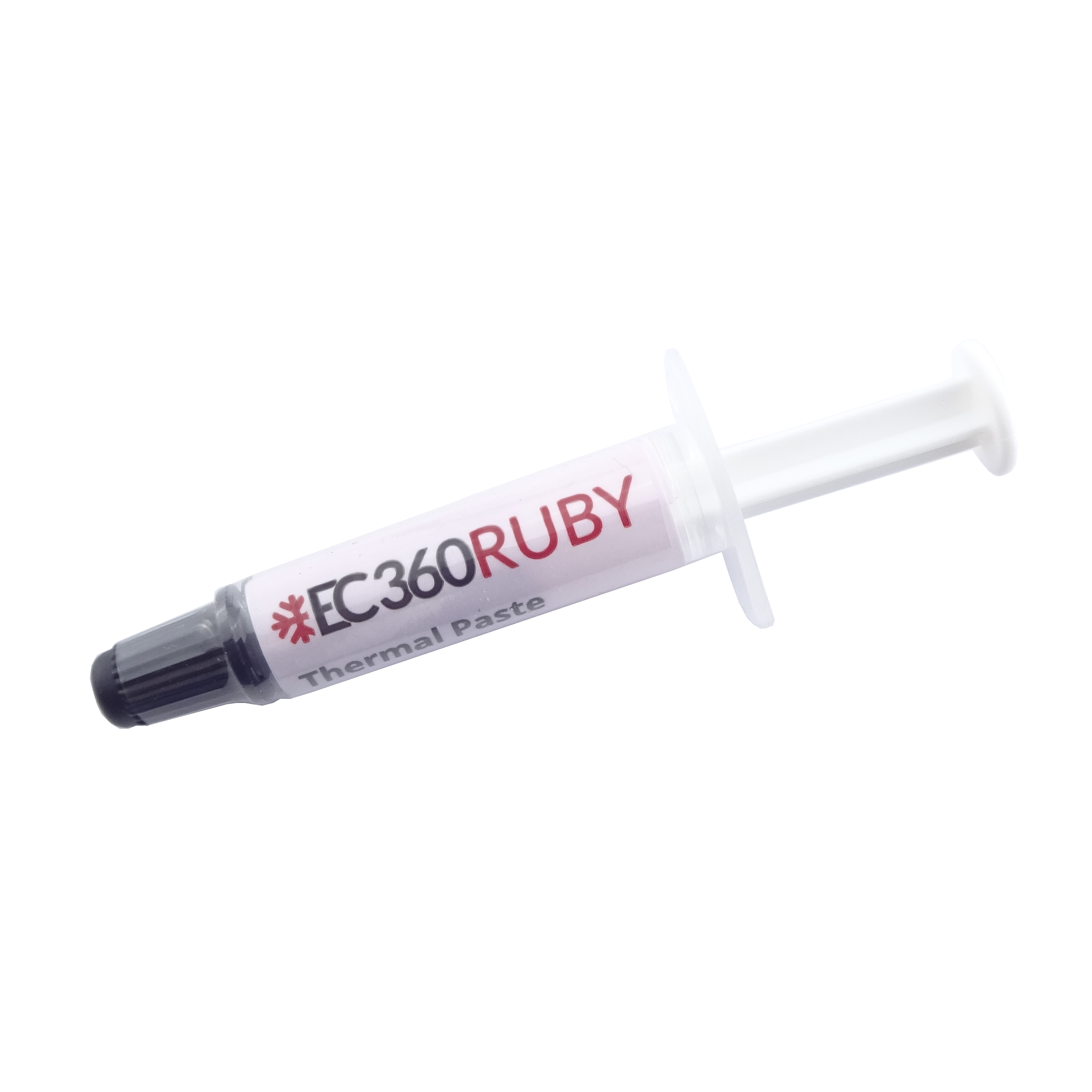

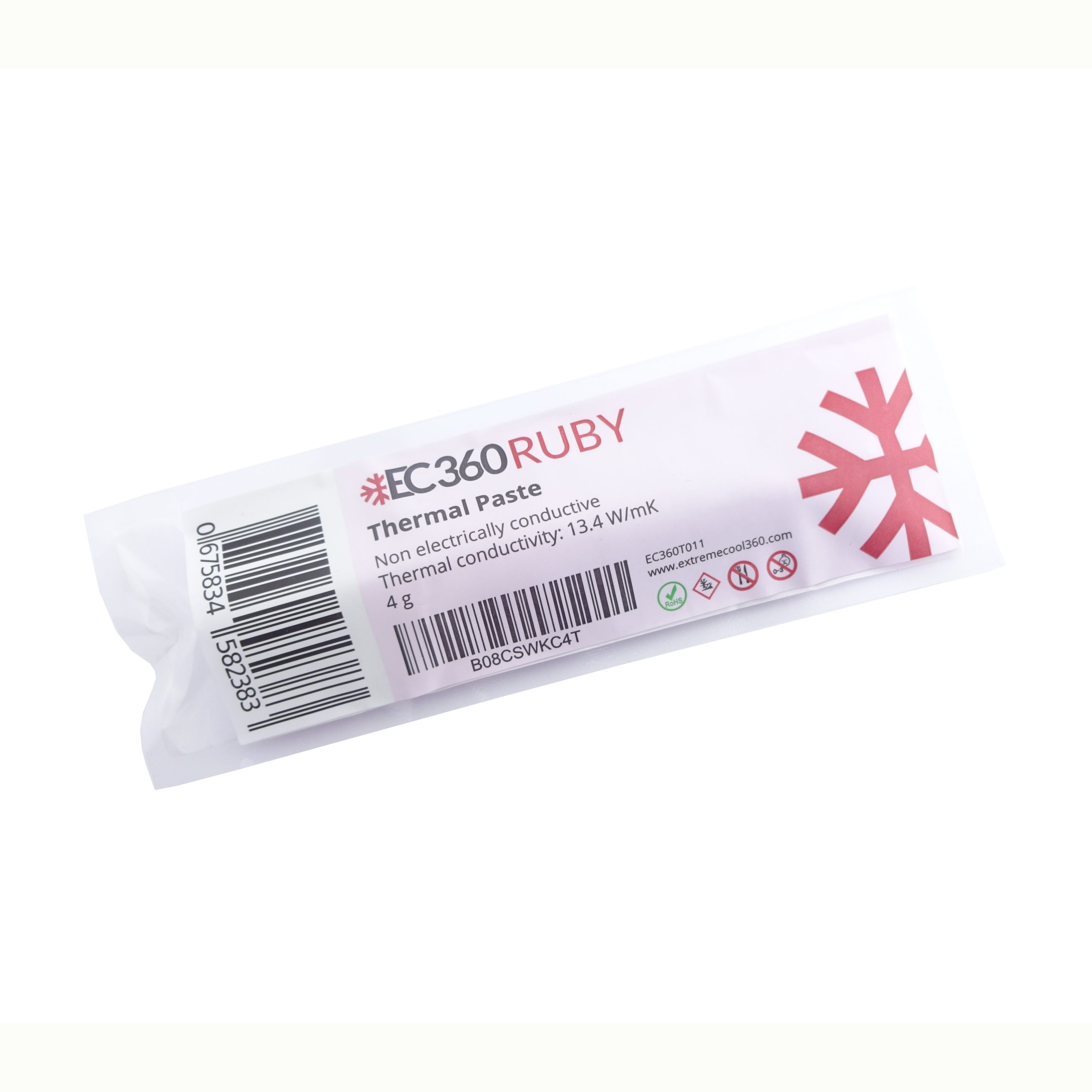

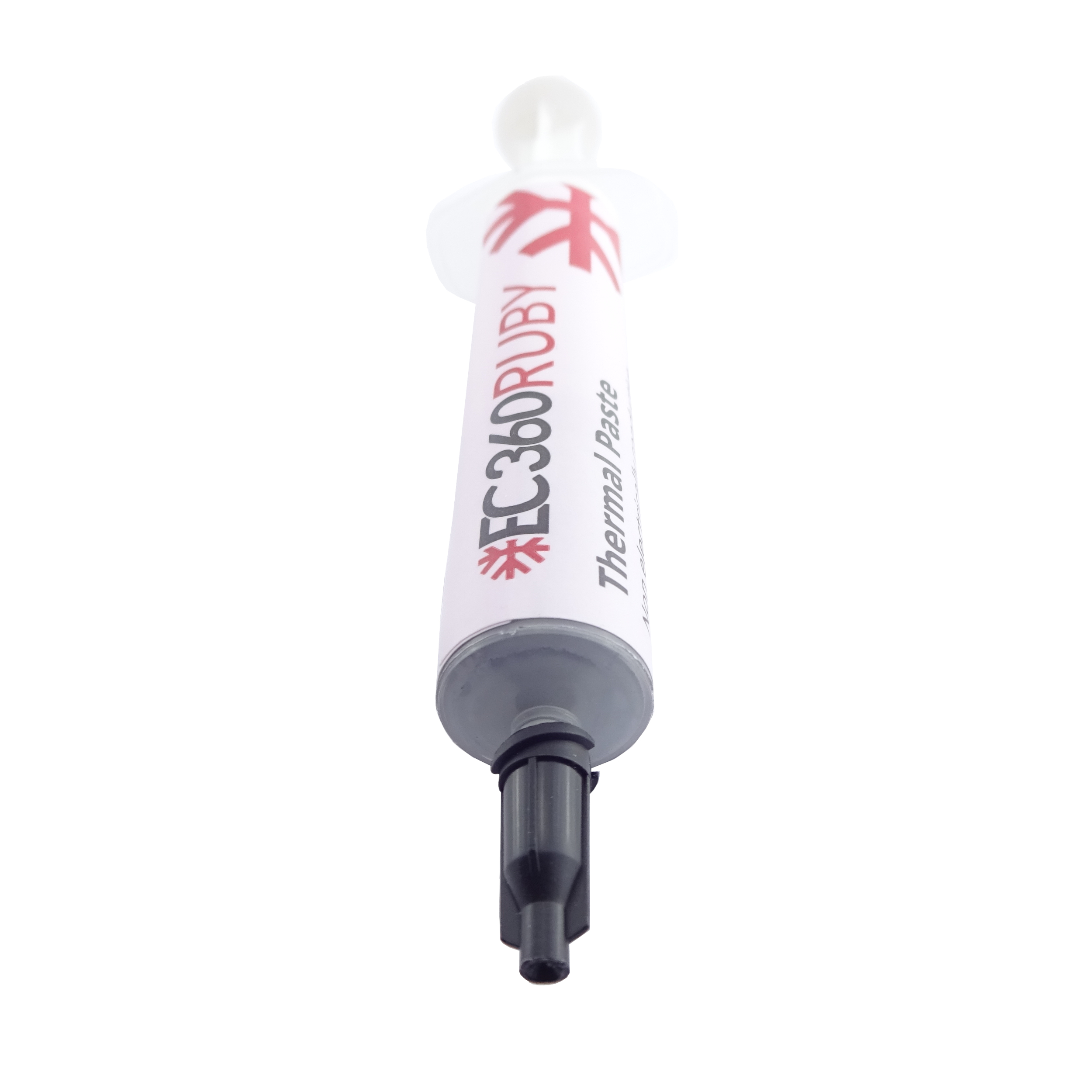

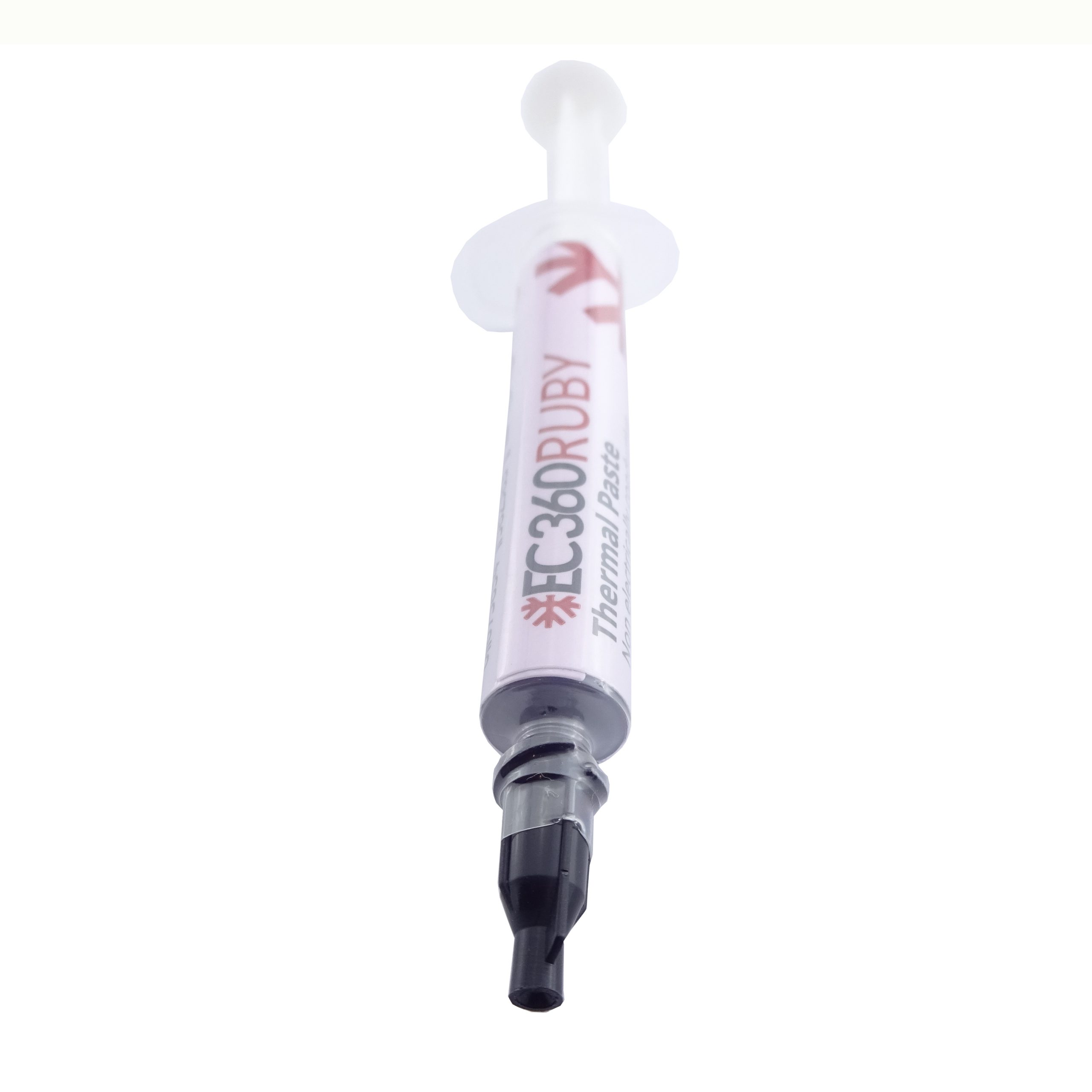

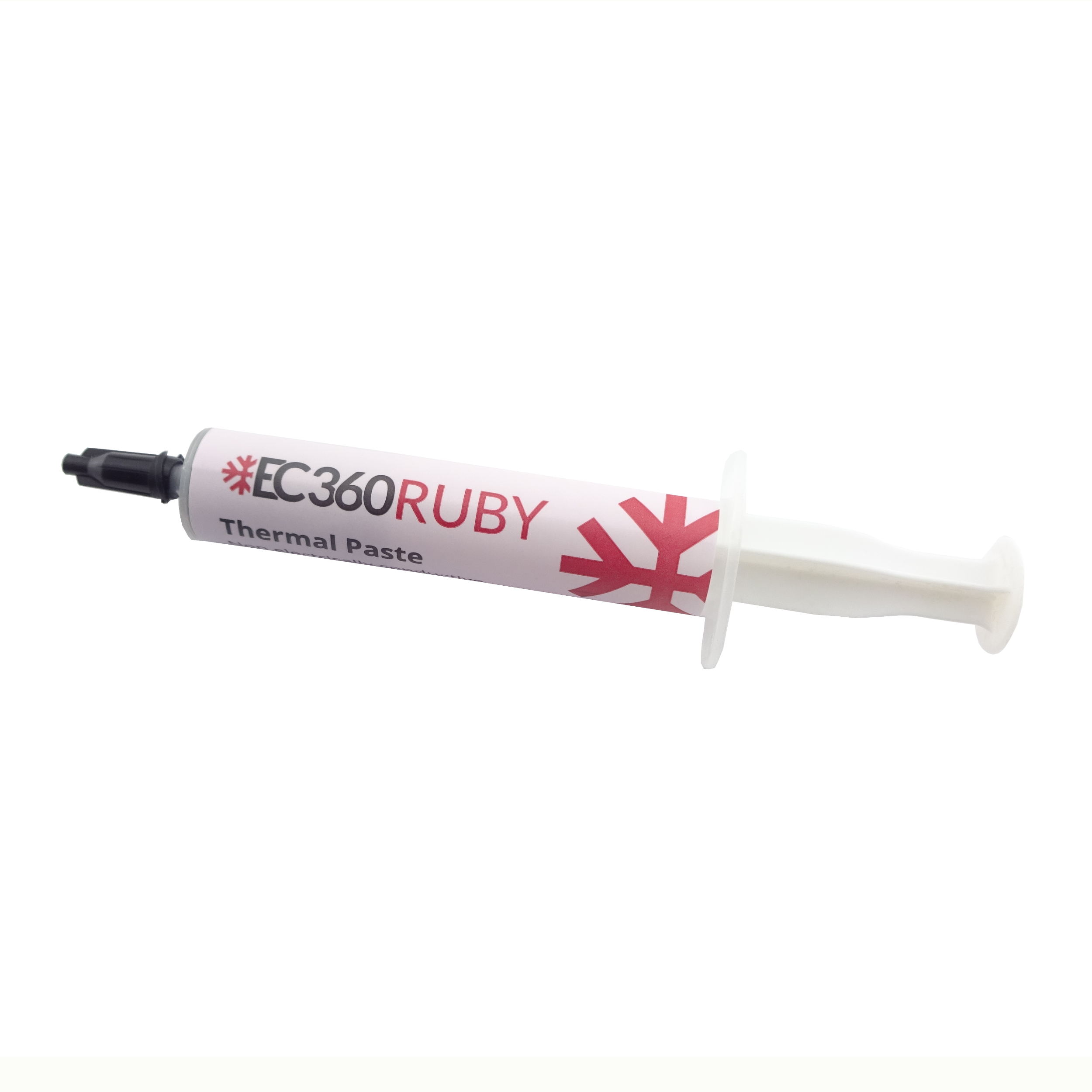

Tube	1,0 g, 4,0 g, 10 g

Technical Properties

Properties	Unit	Value	Test method
Color	-	grey	visual
Thermal Conductivity	W/mk	13.4	ASTM D5470
Thermal Resistance	°C-in2/W	0.001	ASTM D 5470
Specific Gravity	g / cm3	2.5	ASTM D 792
Evaporation (150°/24h)	%	0.15	FED STD 791
Volume Impedance	Ohm-cm	4.0 x 10¹³	ASTM D 257
Viscosity	cP	18000	-
Dielectric Constant	1Mhz	3.3	ASTM D 150
Usable Temperatures	°C	-30 - 20	EN 344
