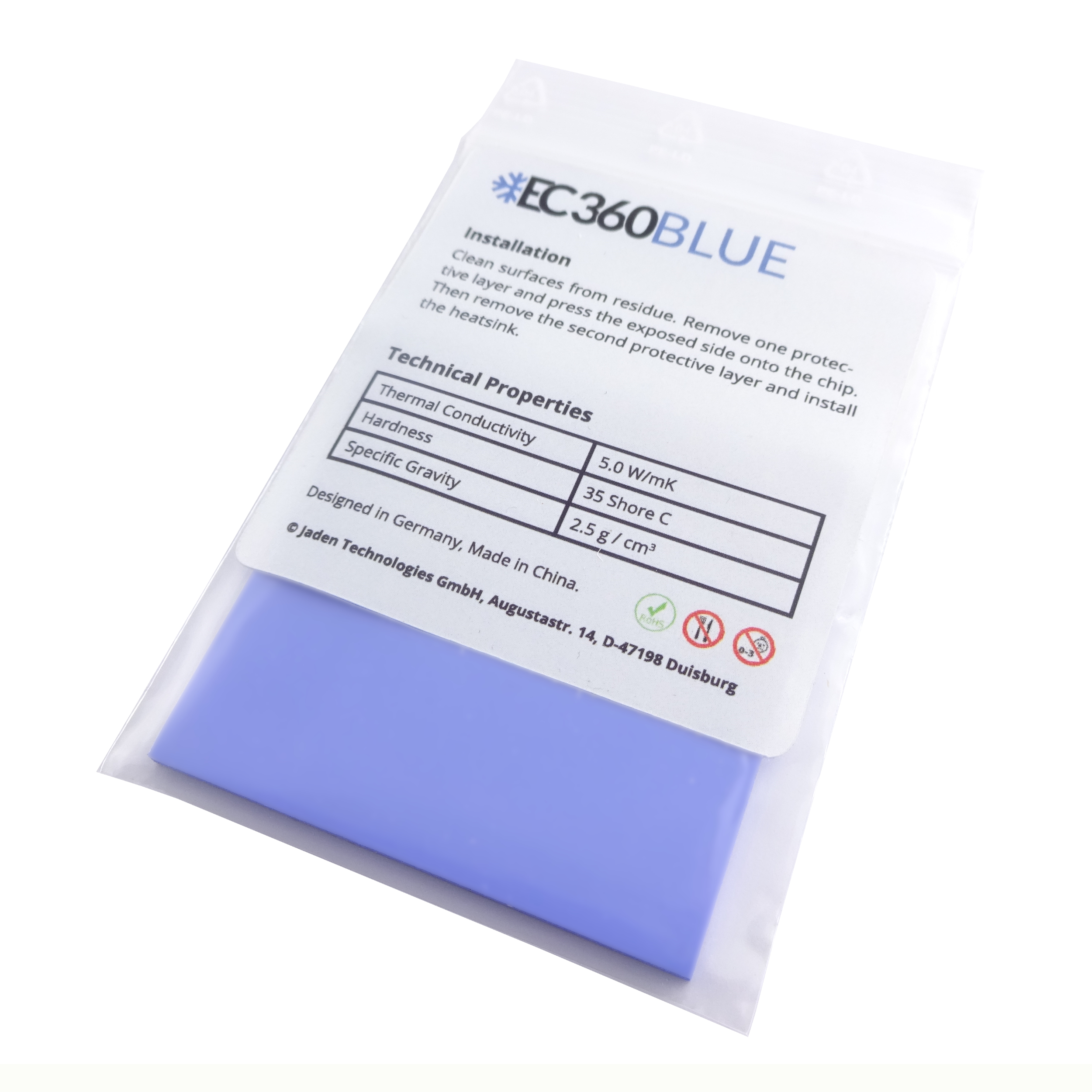

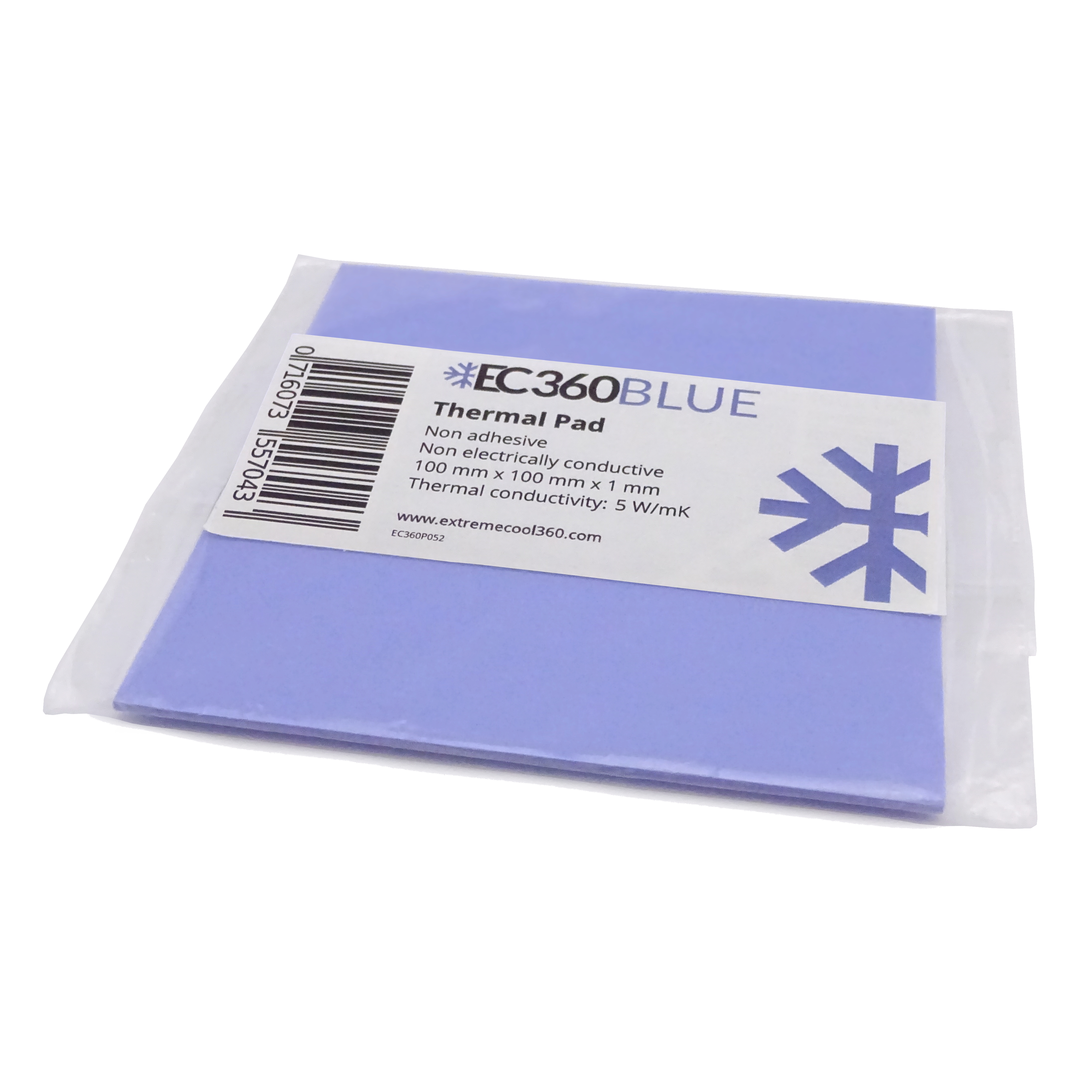

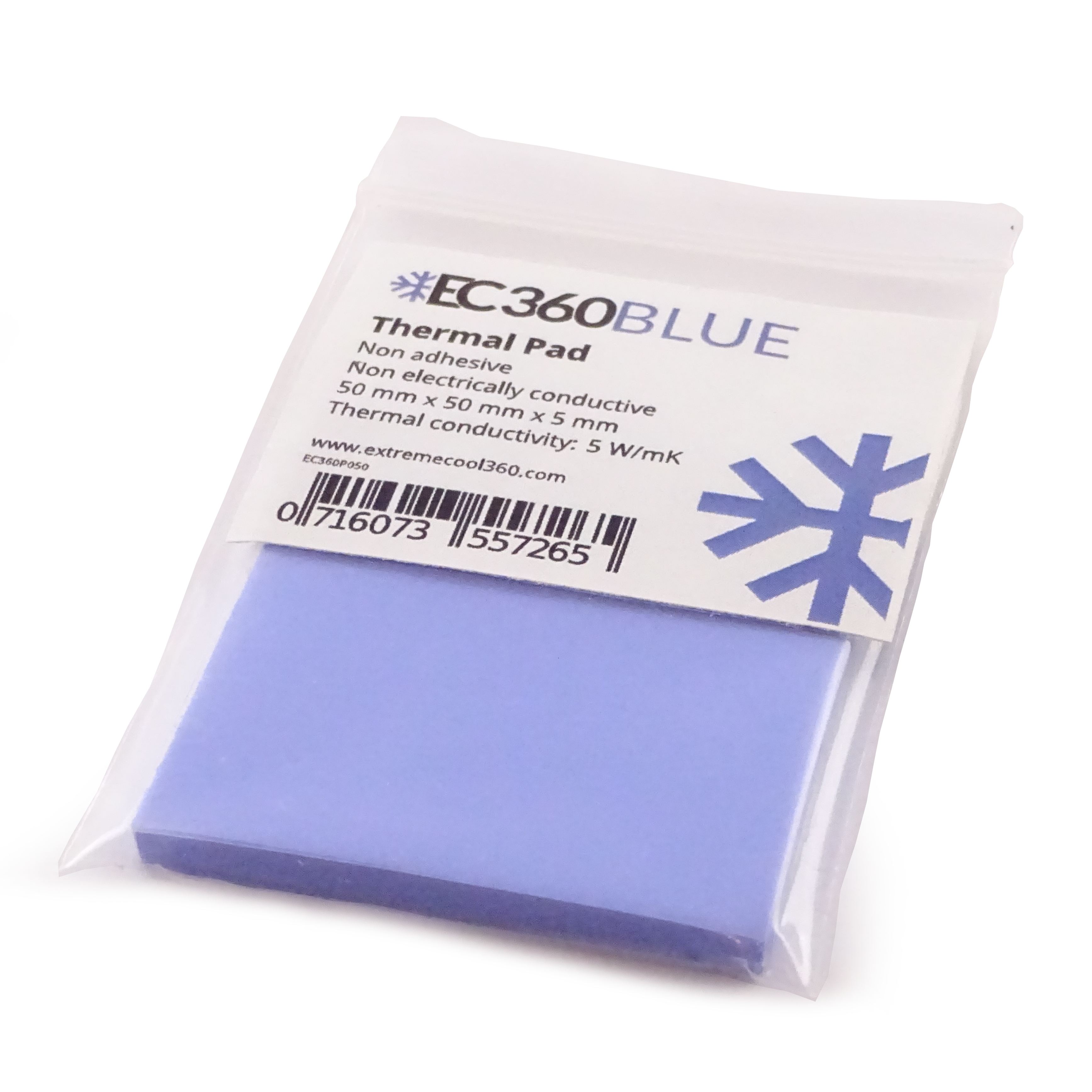

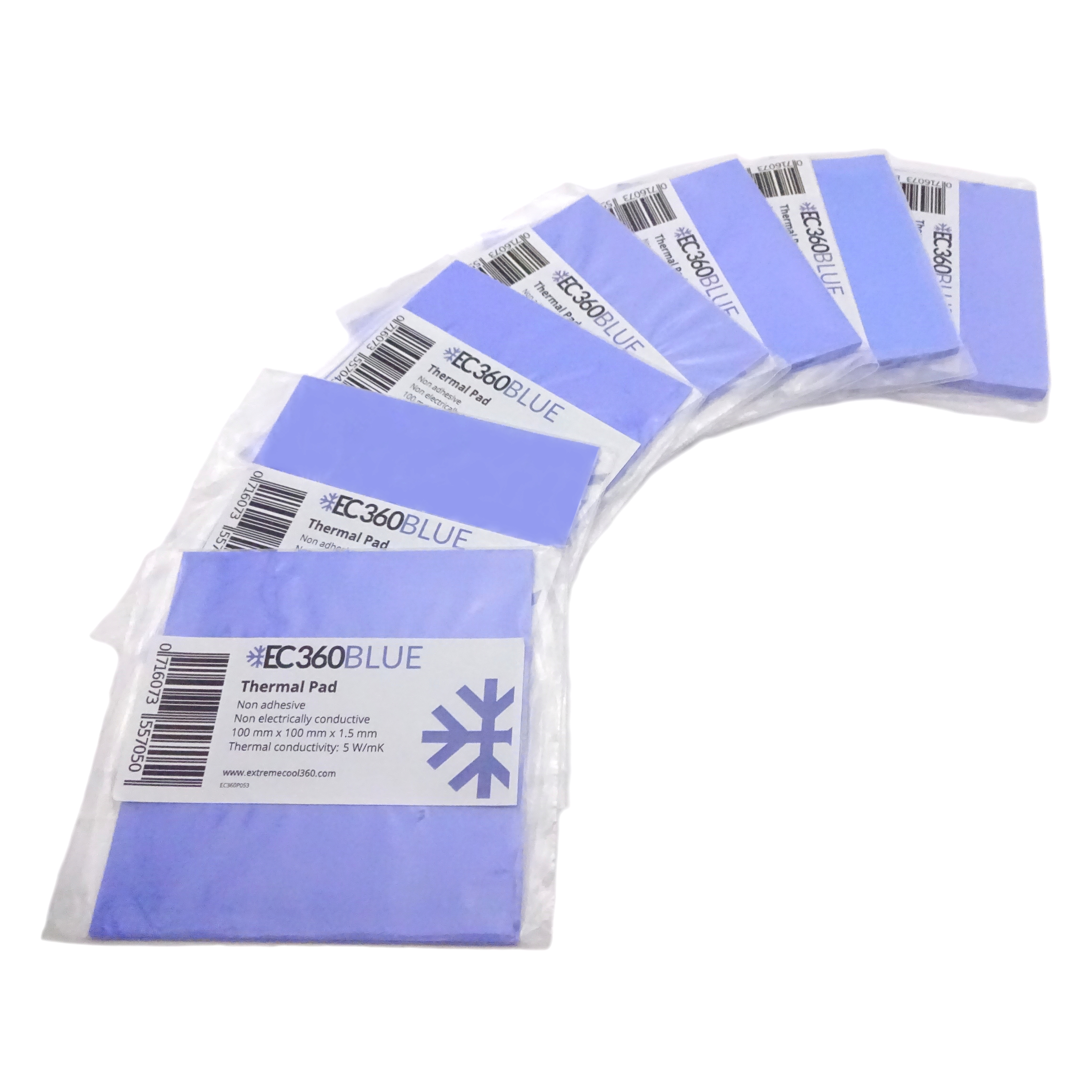

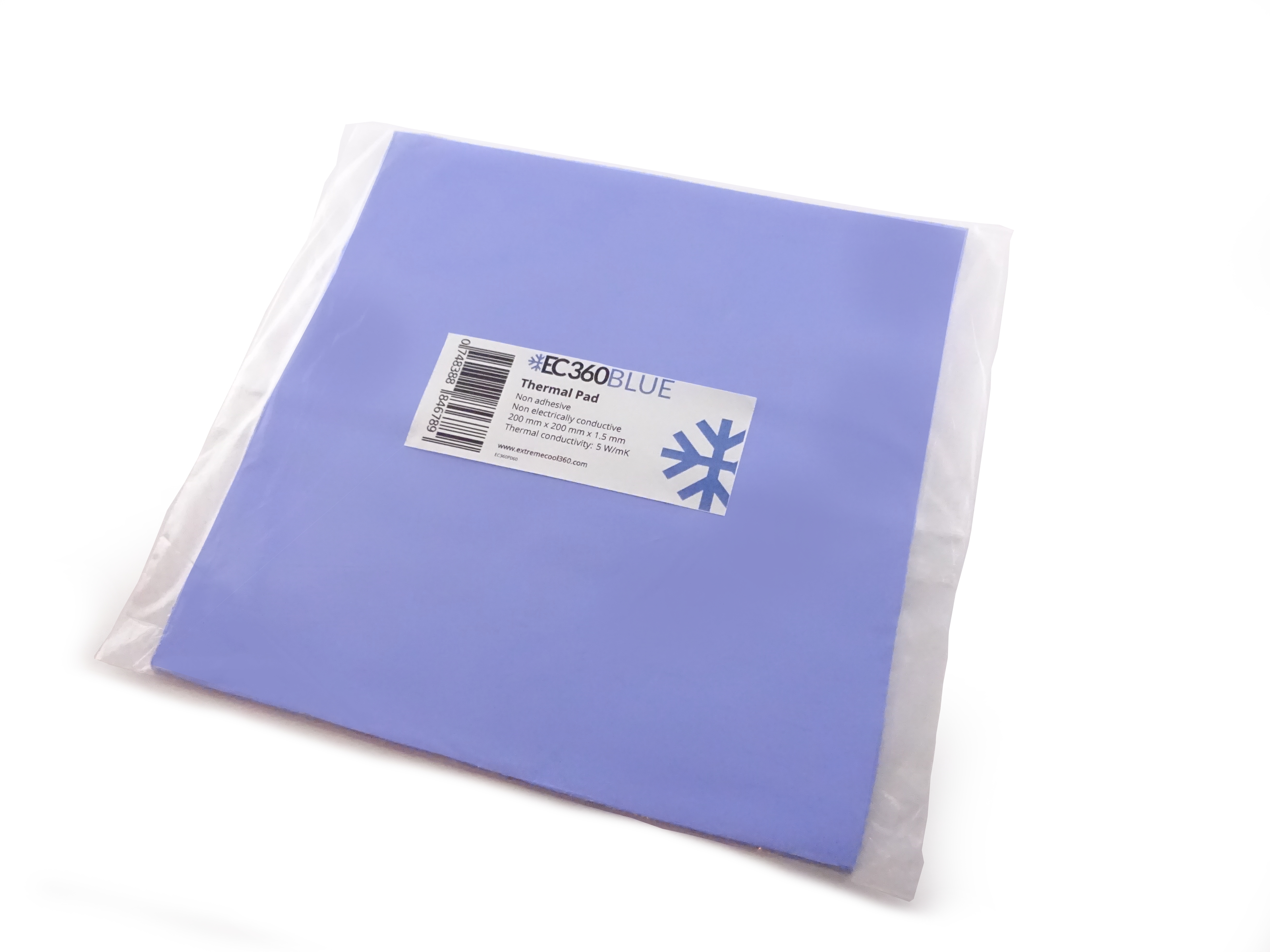

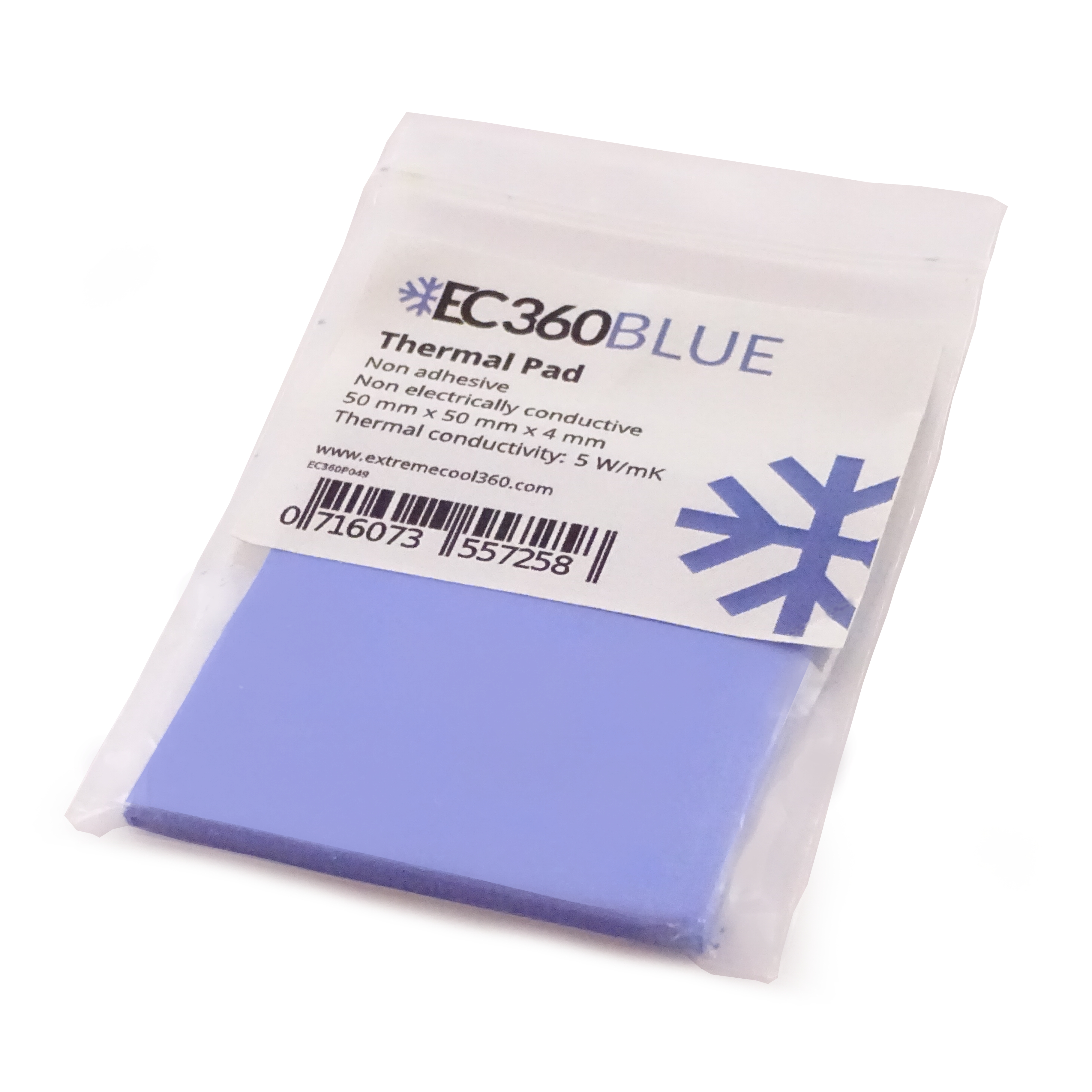

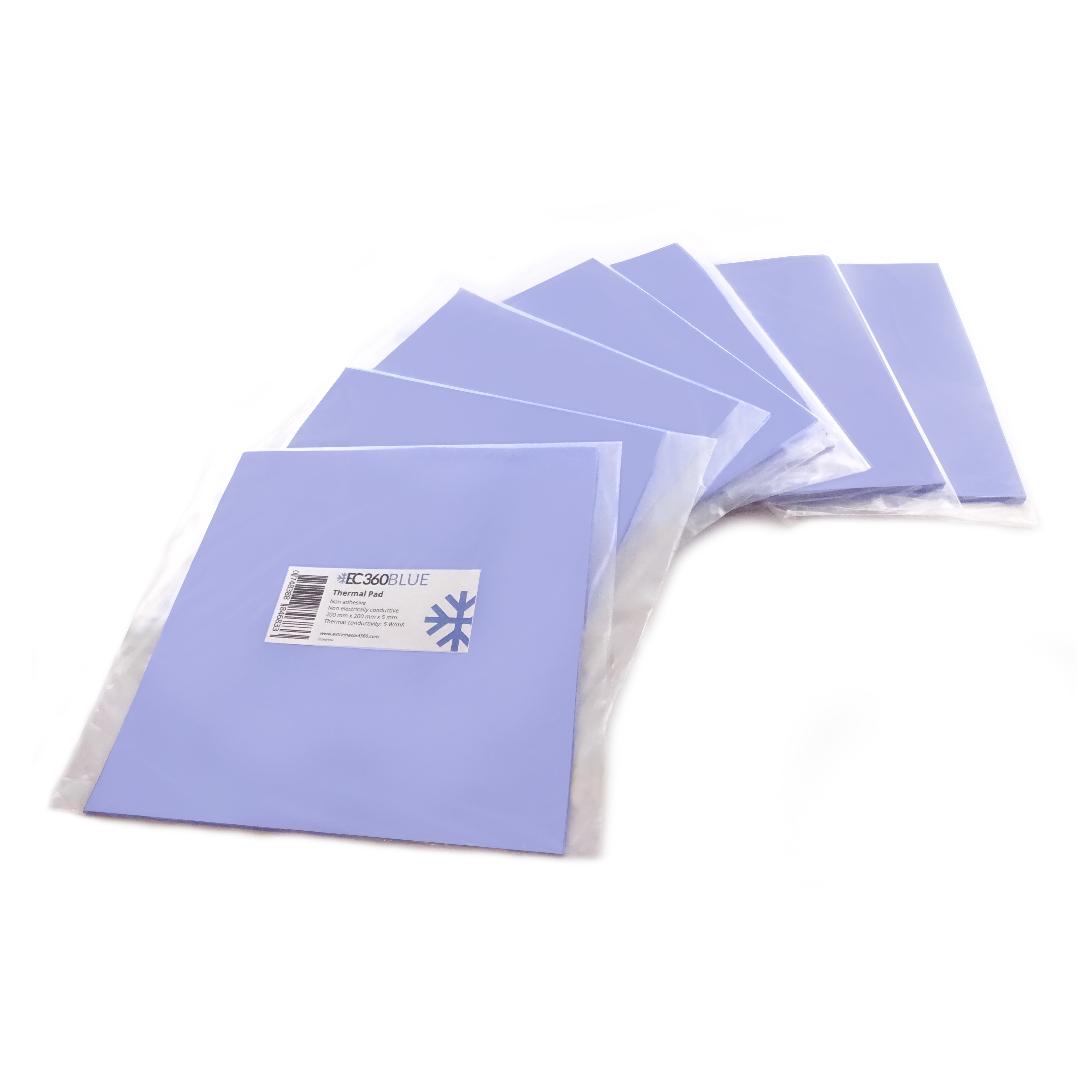

Description

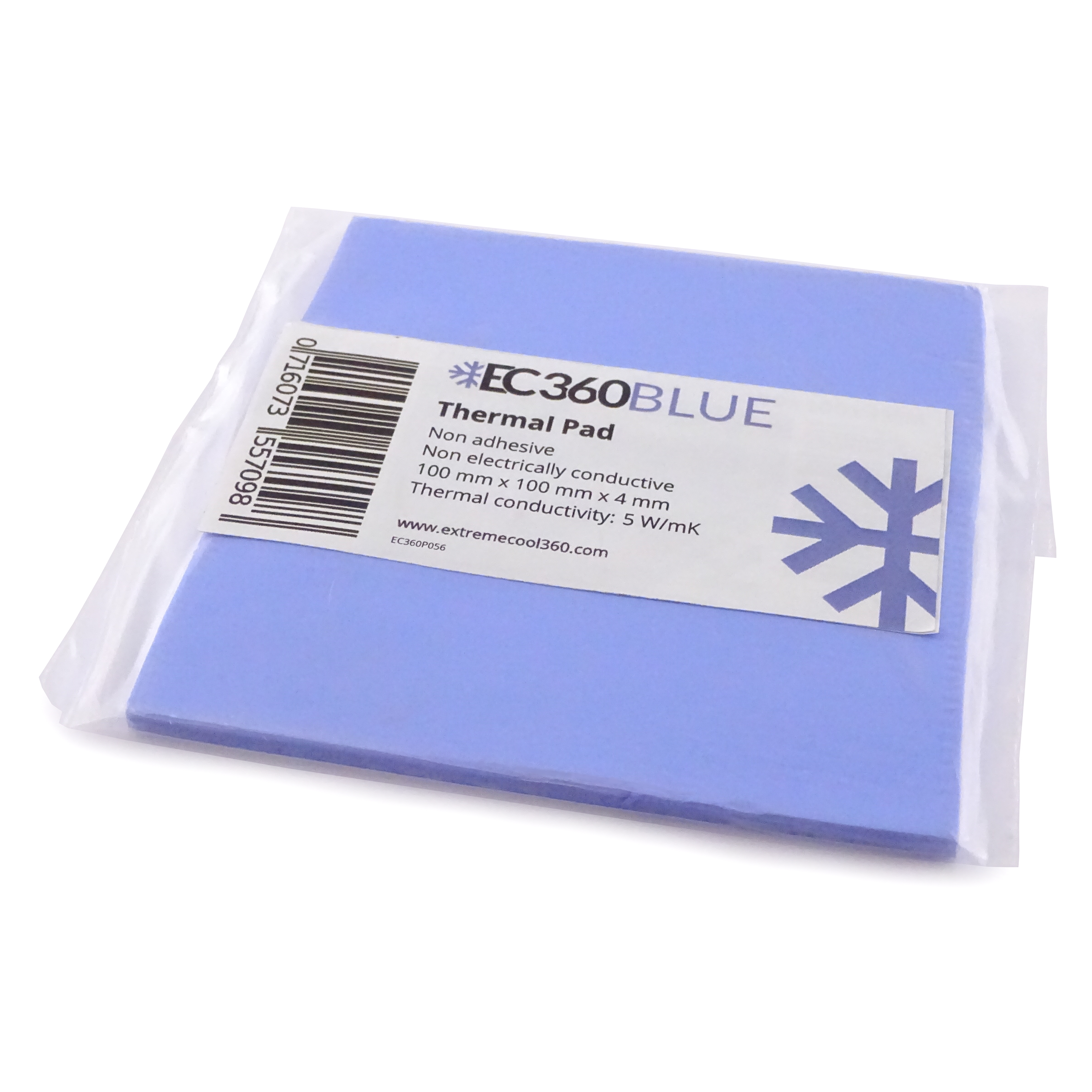

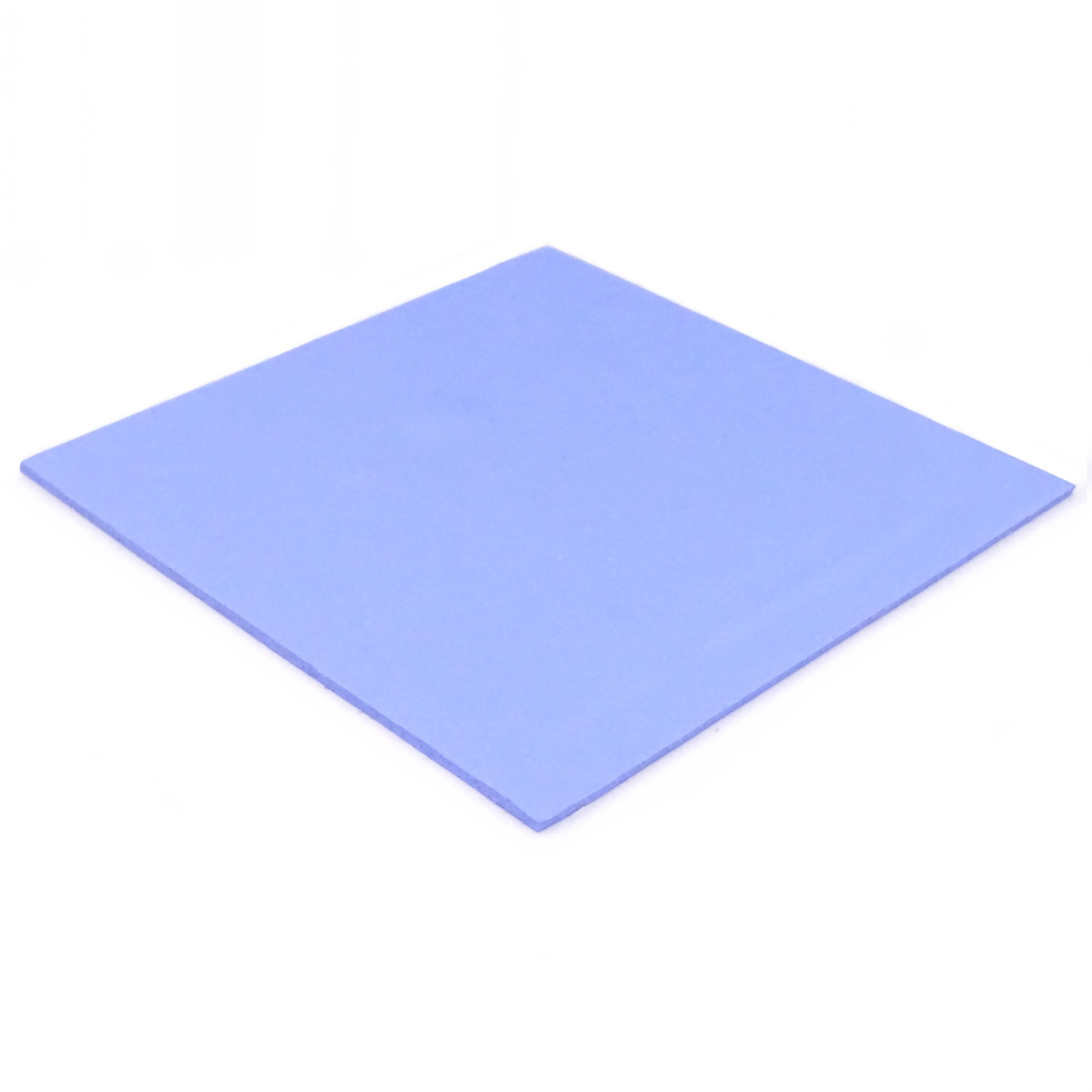

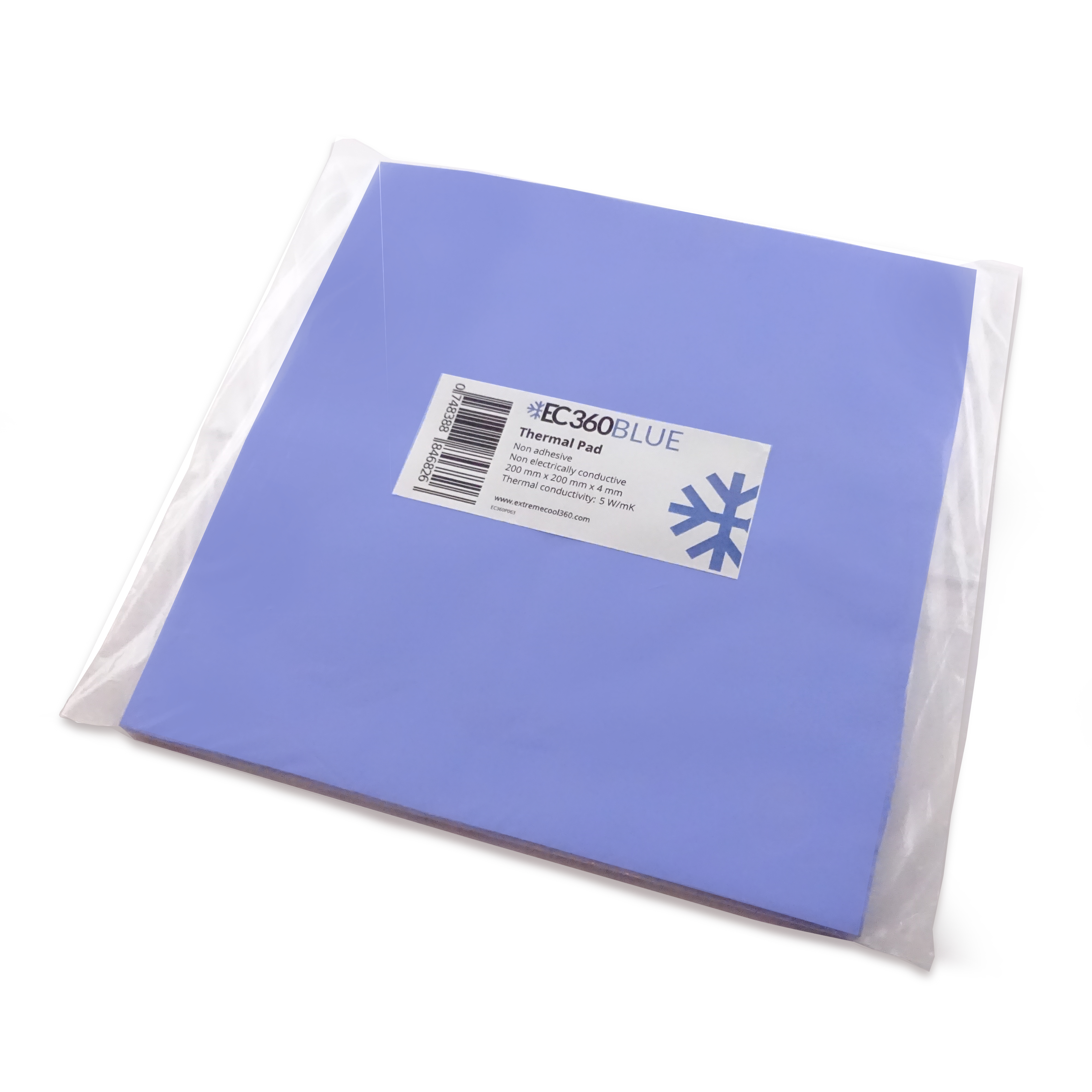

The EC360® BLUE series presents the premium variant of our all-round silicone-based thermal pads with the best price-performance ratio regarding thermal conductivity. It features the highest thermal conductivity for our all-round thermal pads of 5 W/mK.

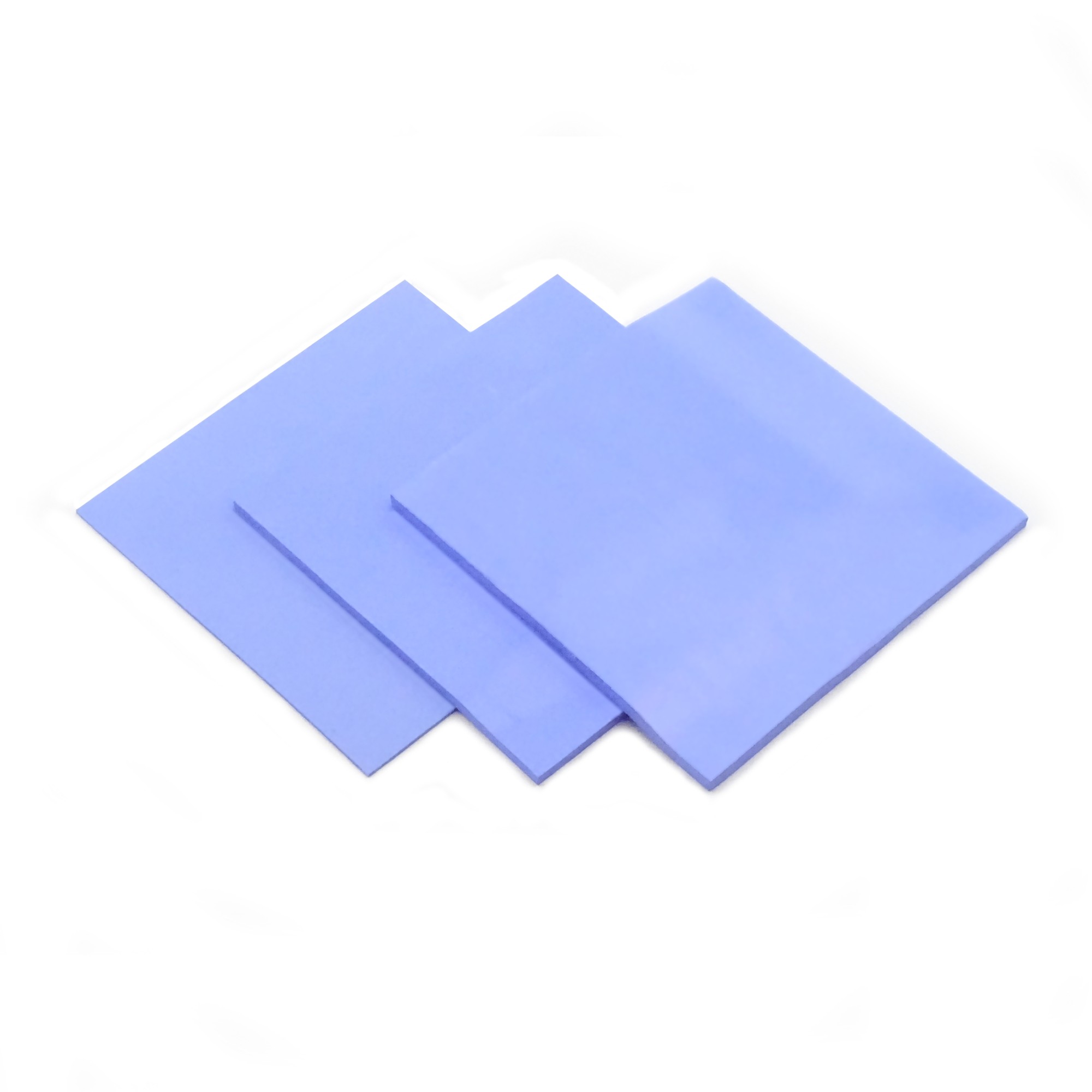

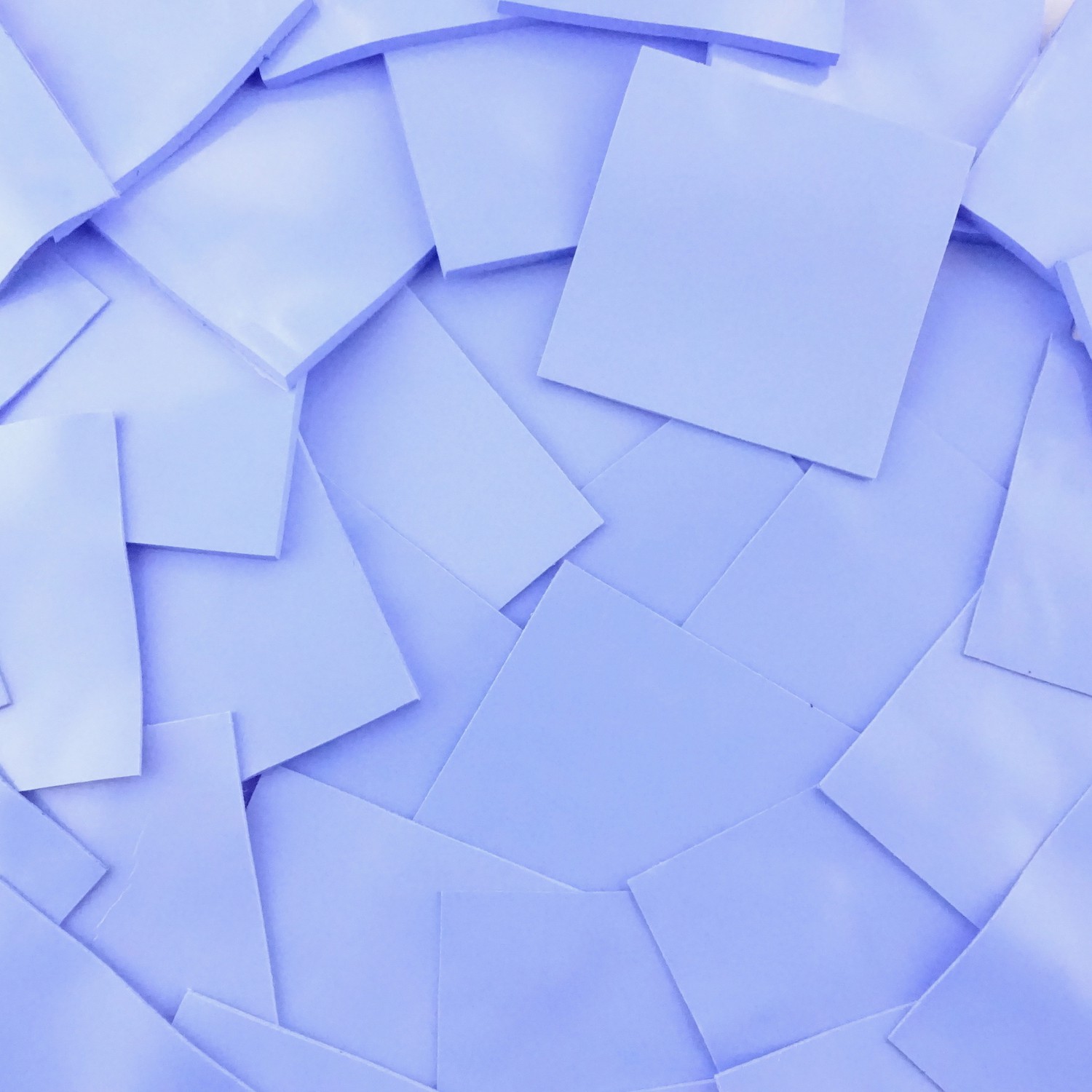

It is suitable for a variety of applications including GPUs (that are cooled by thermal pads), memory chips and other electrical components. The pads have a rubber like consistency, which means that they will deform under pressure and spring back into their original shape. The slight adhesion of the pads allows for easy positioning.
It is the perfect solution for heat-transfer in adverse surface conditions when the use of thermal paste is unsuitable.
Handling is particularly safe, as the pads are electrically isolating and there is no risk of short-circuiting. Additionally, they can easily be cut using a scissor, which allows trimming pads to the perfect size for any surface.
Specs
Types and Configurations

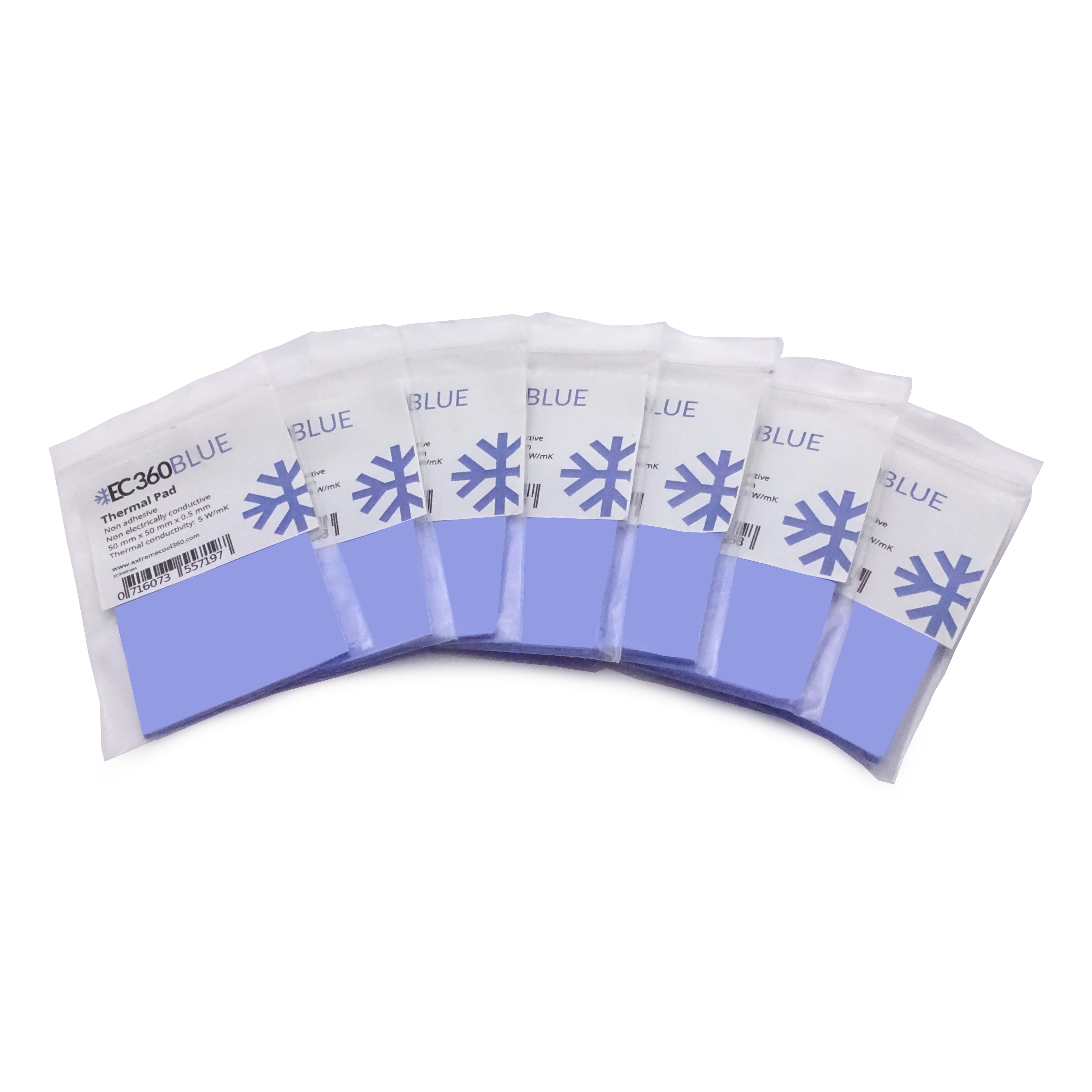

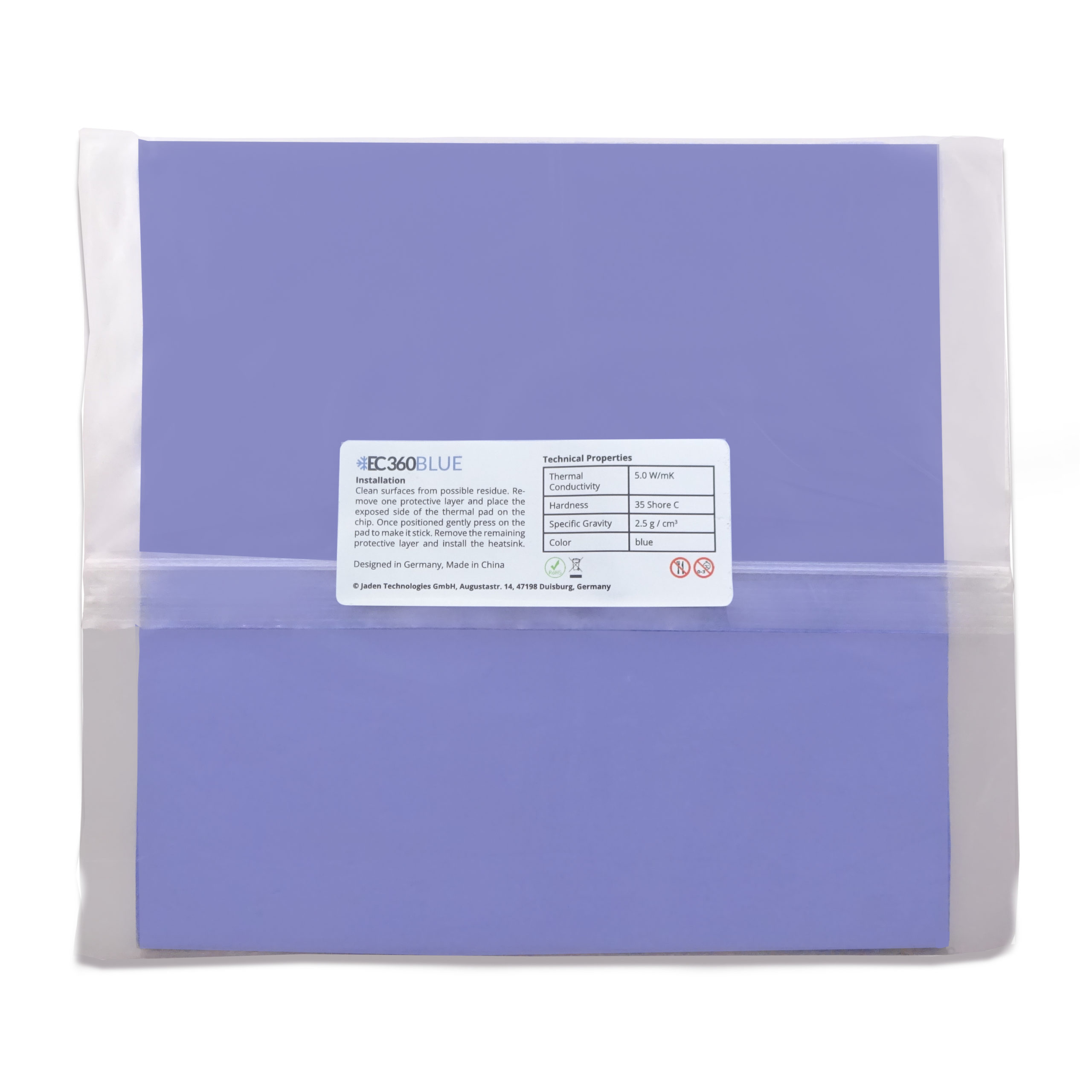

Thickness | Available sizes |
---|---|

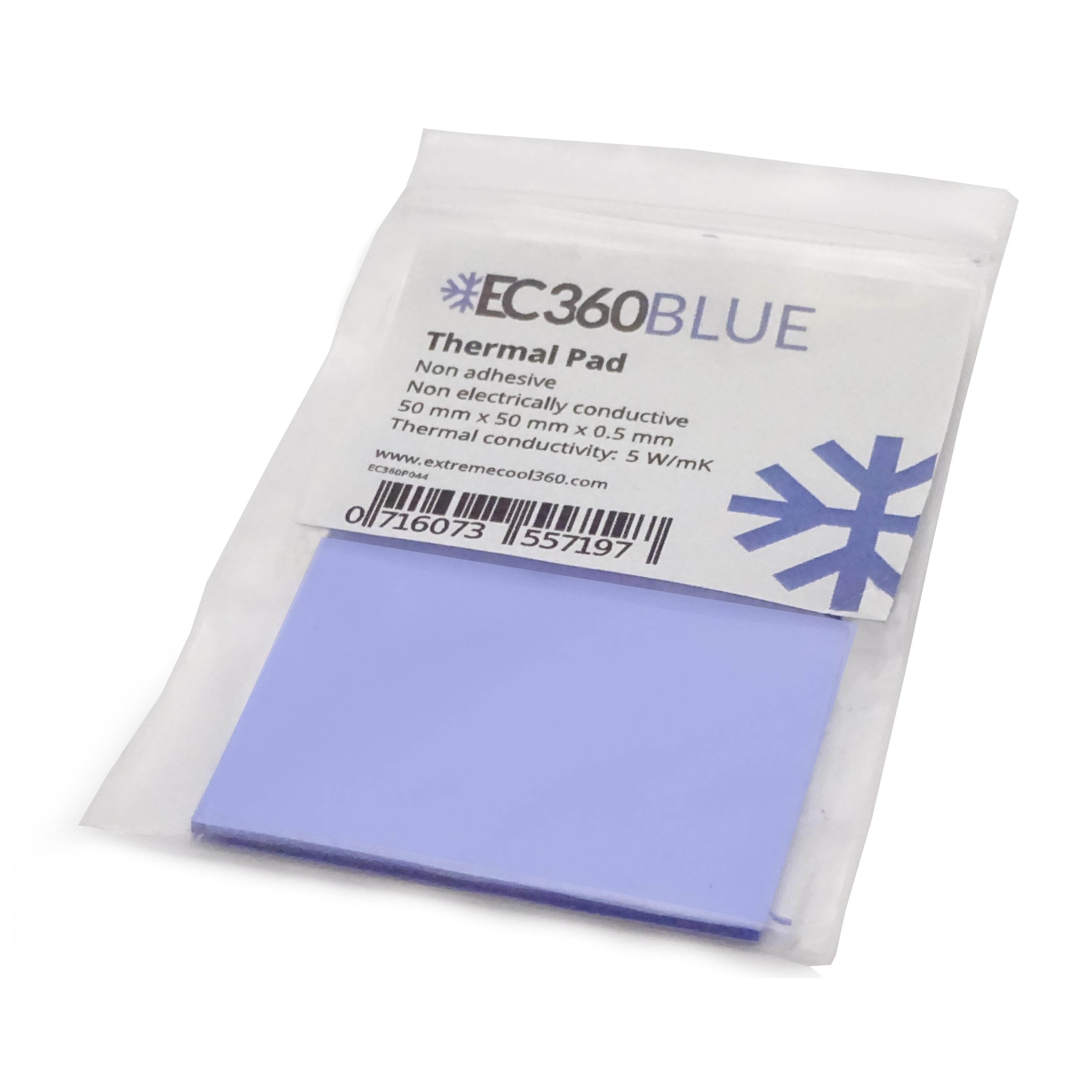

0.5 mm / 0.02 inches | 50x50 mm, 100x100 mm, 200x200 mm |

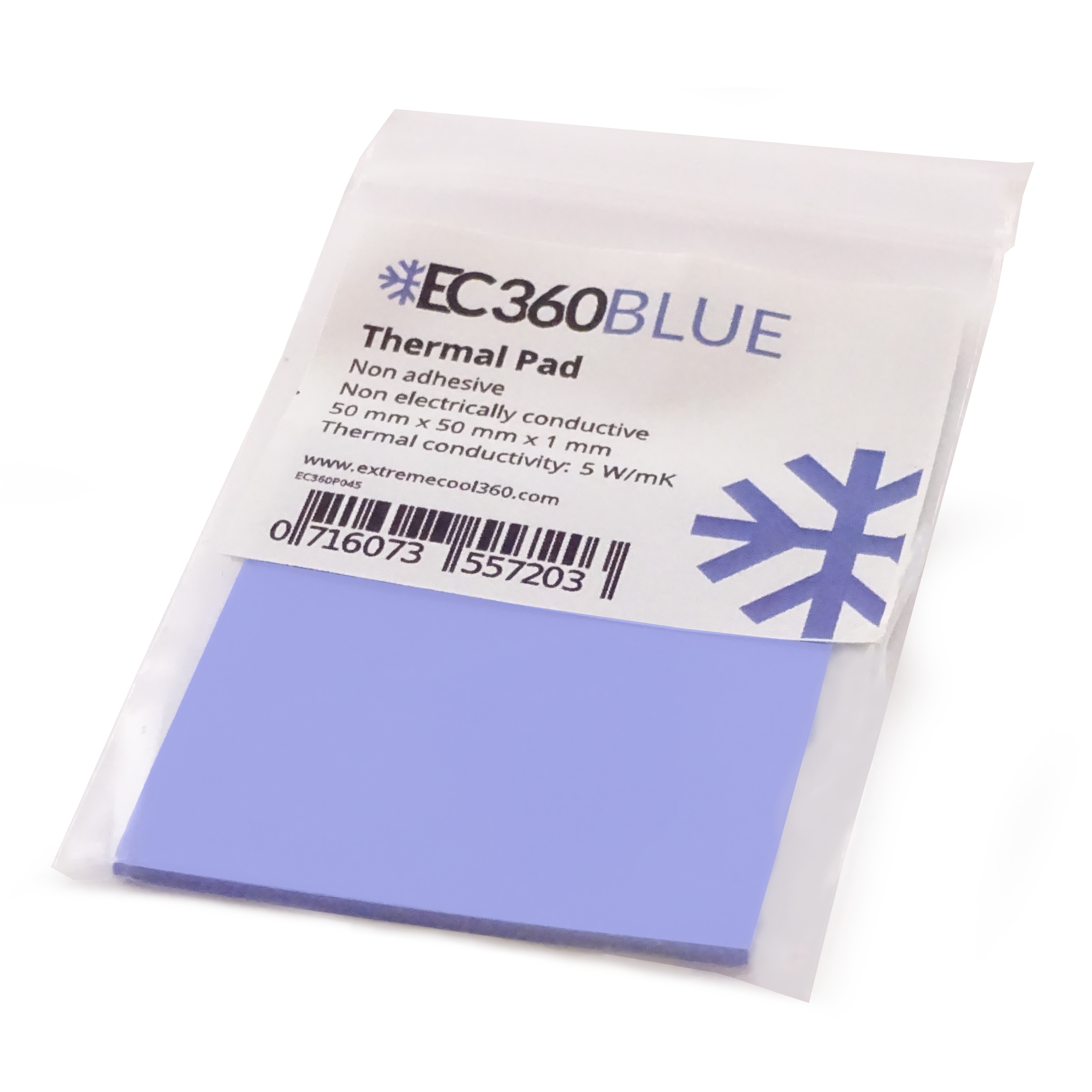

1.0 mm / 0.04 inches | 50x50 mm, 100x100 mm, 200x200 mm |

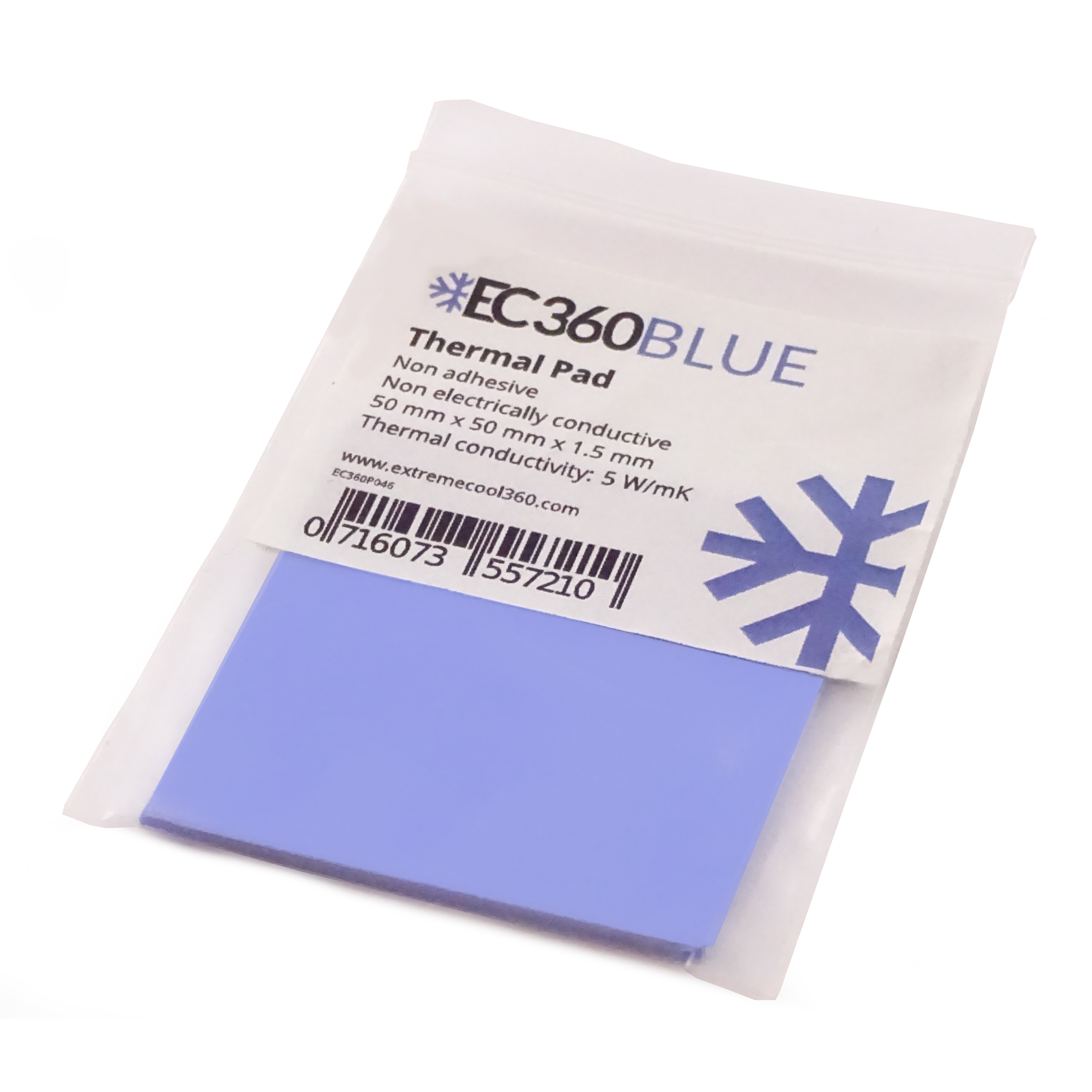

1.5 mm / 0.06 inches | 50x50 mm, 100x100 mm, 200x200 mm |
2.0 mm / 0.08 inches | 50x50 mm, 100x100 mm, 200x200 mm |
3.0 mm / 0.12 inches | 50x50 mm, 100x100 mm, 200x200 mm |
4.0 mm / 0.16 inches | 50x50 mm, 100x100 mm, 200x200 mm |
5.0 mm / 0.20 inches | 50x50 mm, 100x100 mm, 200x200 mm |

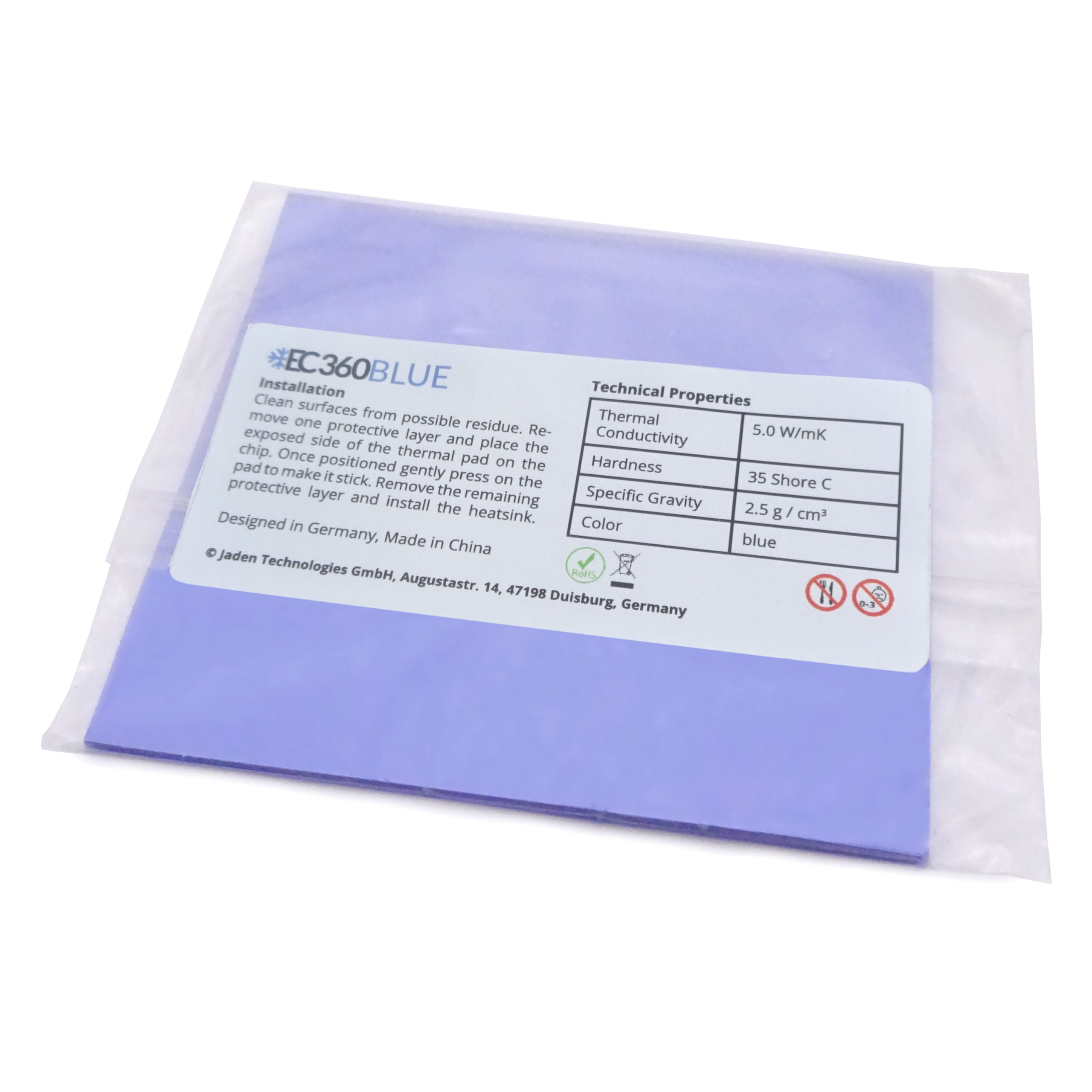

Technical Properties
Properties | Unit | Value | Test method |
---|---|---|---|
Color | - | blue | visual |
Thermal Conductivity | W/mk | 5.0 | ASTM D 5470 |
Specific Gravity | g / cm^3 | 2.5 | ASTM D 792 |
Hardness | Shore C | 35 | ASTM D 2240 |
Tensile Strength | psi | 71 | ASTM D 412 |
Volume Impedance | Ohm-cm | 2.9 x 10¹¹ | ASTM D 257 |
Breakdown Voltage | kV/mm | 5.0 | ASTM D 149 |
Usable Temperatures | °C | -40 - 250 | EN 244 |
Flame Rating | - | VO | UL 94 |
